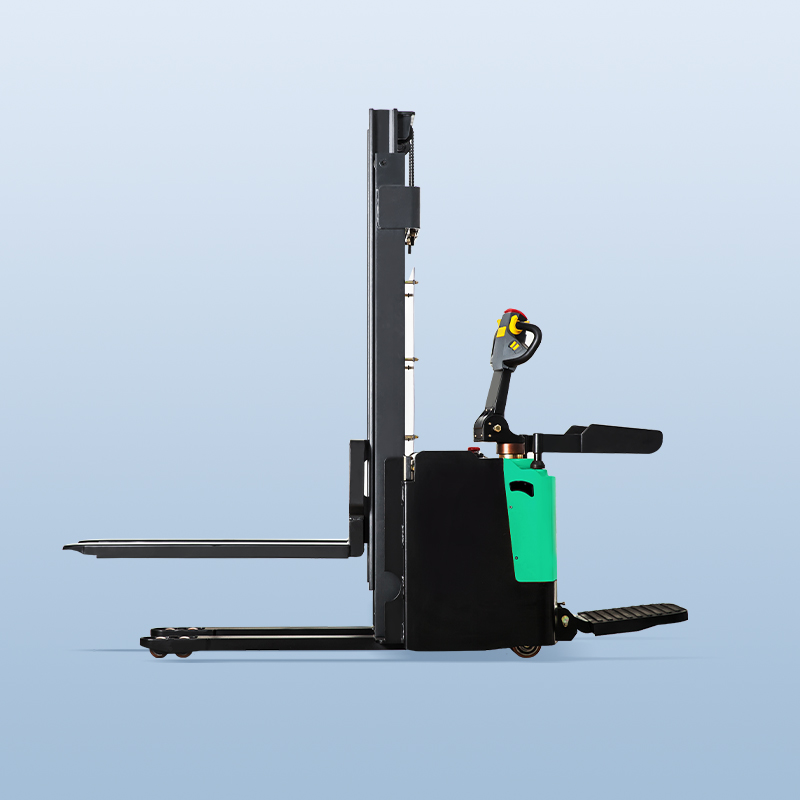

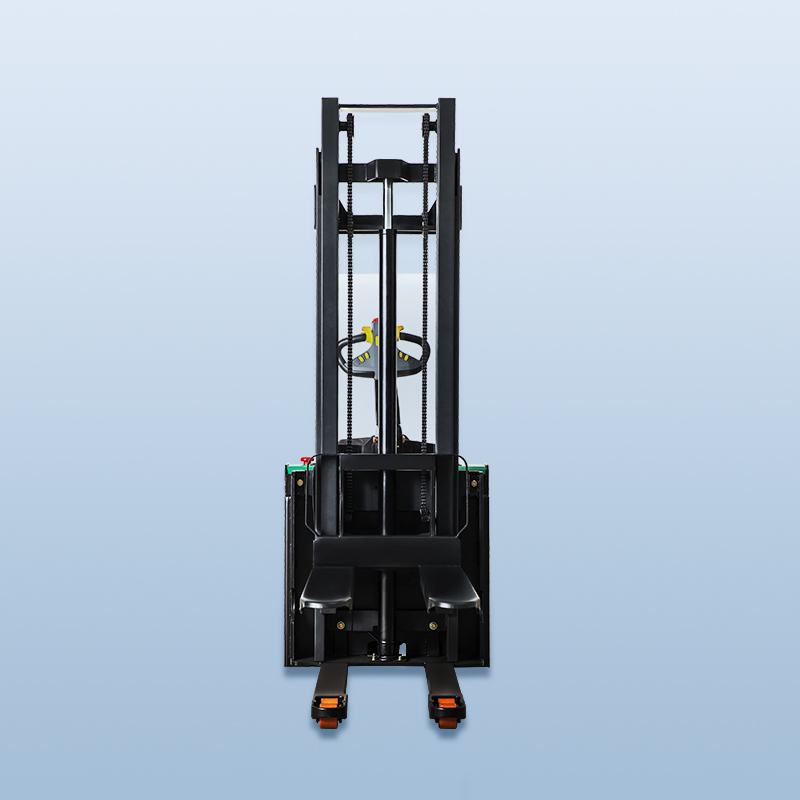

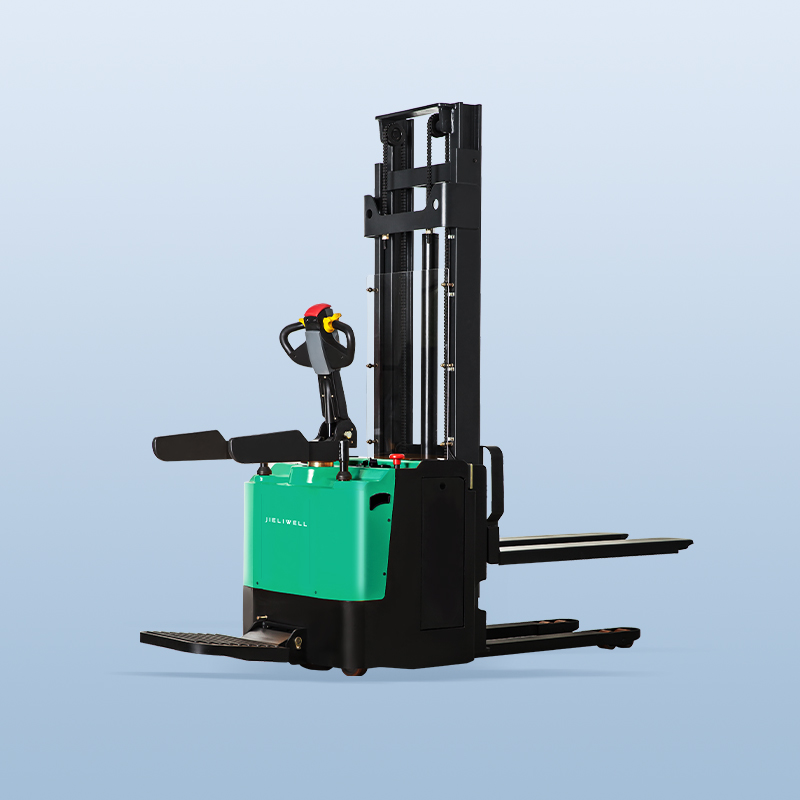

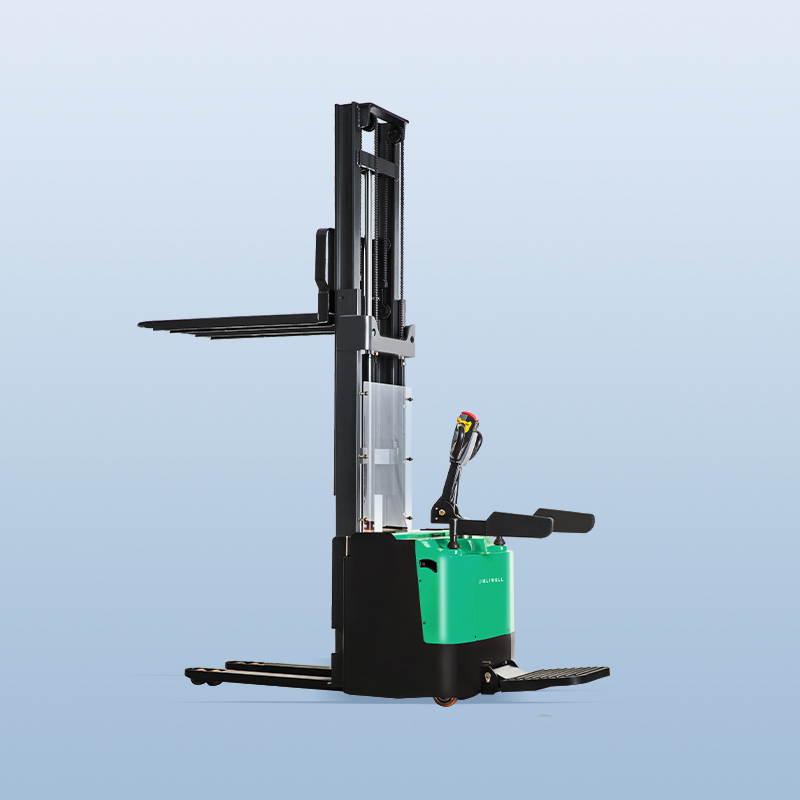

Electric Pallet Stackers
♦ Cold-drawn channel steel door frame, detachable design, high precision, strong hardness; Exquisite and safe.
♦ High performance hydraulic system, low voice, small vibration, stable and reliable lift.
♦ CURTIS AC controller with stepless speed regulation and reverse braking function.
♦ Electromagnetic and regenerative braking system ensures safe parking of vehicles on slopes.
♦ Adopt floating frame structure design; With advanced installation mode; The piston rod has large force area and strong deformation resistance.
♦ Standard narrow leg for single side tray * Double side tray optional wide leg (forged adjustable fork).
Technical parameter
Model
ES10
ES15
ES20
Load capacity
KG
1000
1500
2000
Load cente
MM
600
600
600
Lifting height
MM
3000
3000
3000
Static height of portal frame
MM
2045
2045
2045
Maximum height of vehicle
MM
3540
3540
3540
Overall length
Does not contain goods fork
MM
1990
1990
2000
Fork length
MM
1150
1150
1150
Fork width
MM
550/685
550/685
550/685
Battery voltage/capacity
V/AH
24/210
24/210
24/210
Service weight with battery
KG
930
1090
1380
