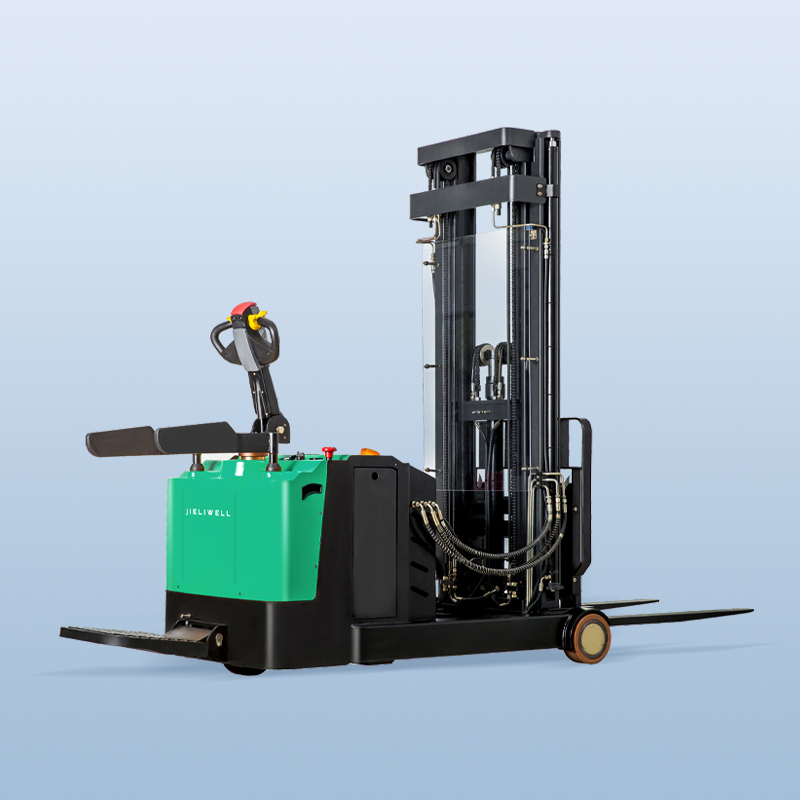

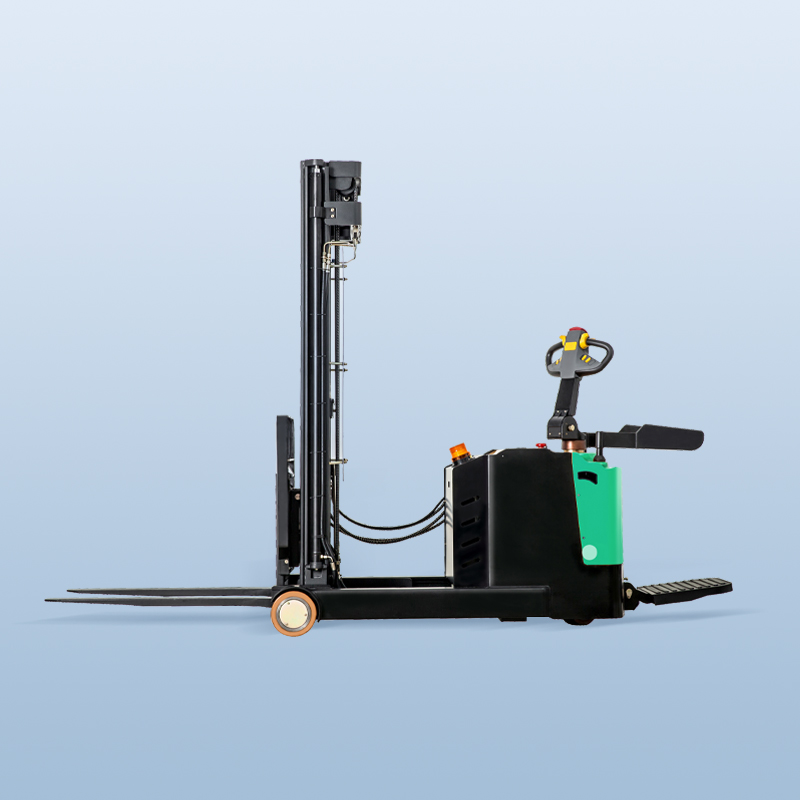

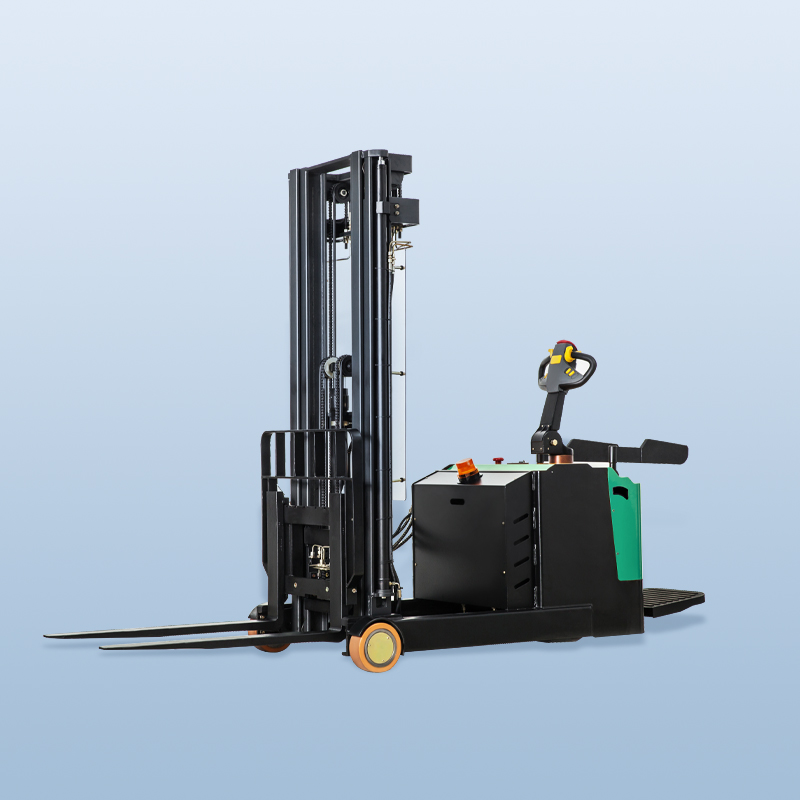

Reach Trucks

♦ High quality automatic intelligent control handle, EPS electronic power steering, easy and fast control.

♦ High performance hydraulic system, low voice, small vibration, stable and reliable lift.

♦ CURTIS AC controller with stepless speed regulation and reverse braking function.

♦ Electromagnetic regenerative braking system ensures safe parking of vehicles on slopes.

♦ Standard distribution fork front and rear tilt function, movable door frame before and after; Suitable for single and double sided tray.

Technical parameter
Model
MRS10
MRS15
MRS20
Load capacity
KG
1000
1500
2000
Load center
MM
500
500
500
Lifting height
MM
2500/3000/3500
2500/3000/3500
2500/3000/3500
Mast lower height
MM
1790/2040/2290
1790/2040/2290
1790/2040/2290
Static height of portal frame
MM
3370/3870/4170
3370/3870/4170
3370/3870/4170
Overall length
Excluding the pedal
MM
2686
2786
2986
Overall width
MM
850
850
900
Battery voltage/capacity
V/AH
24/210
24/210
24/210
Service weight with battery
KG
1800
1900
2000
Down
