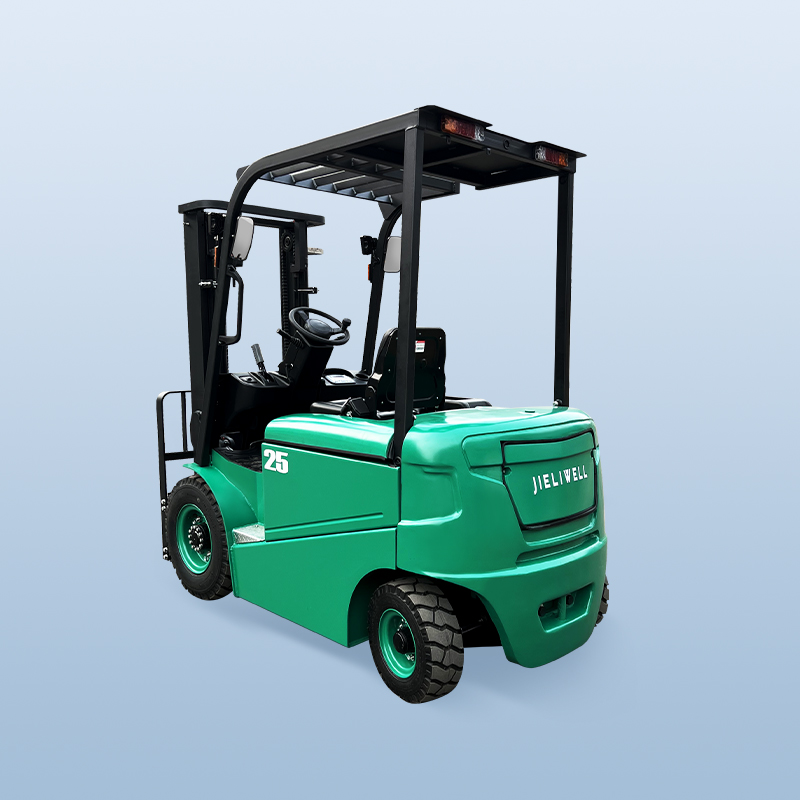

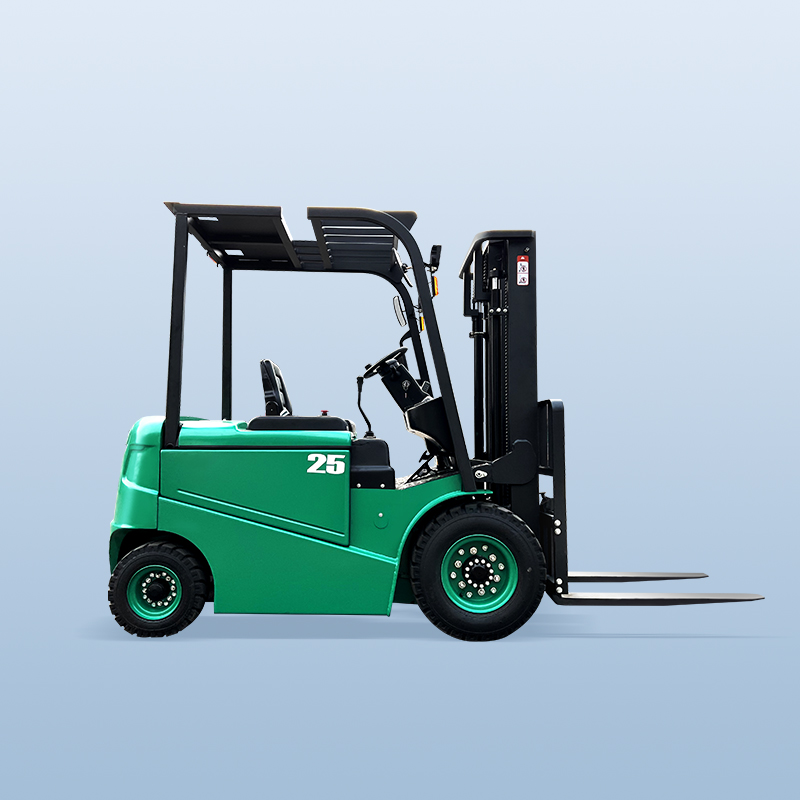

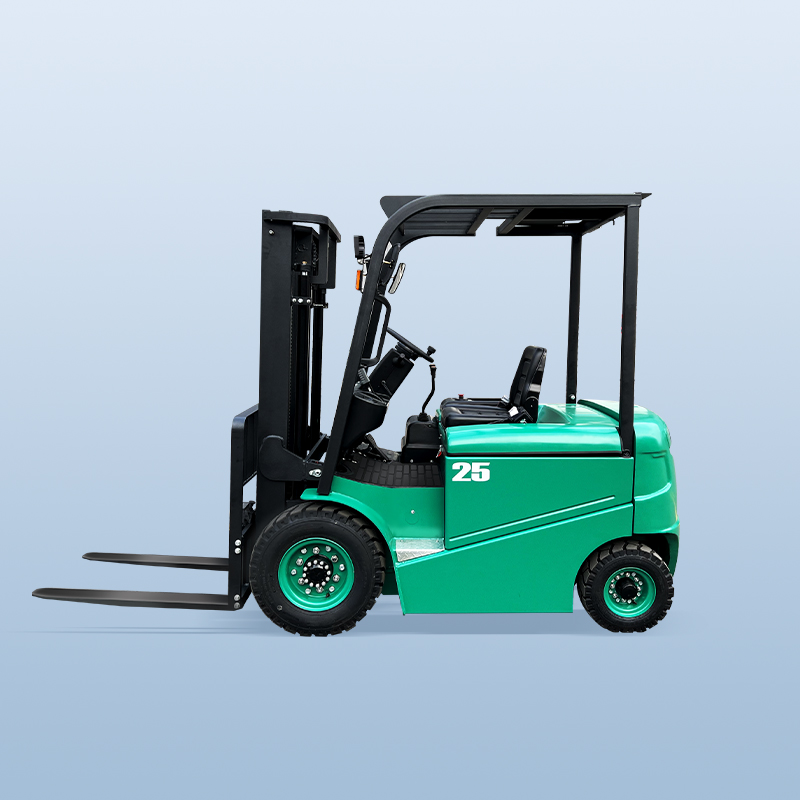

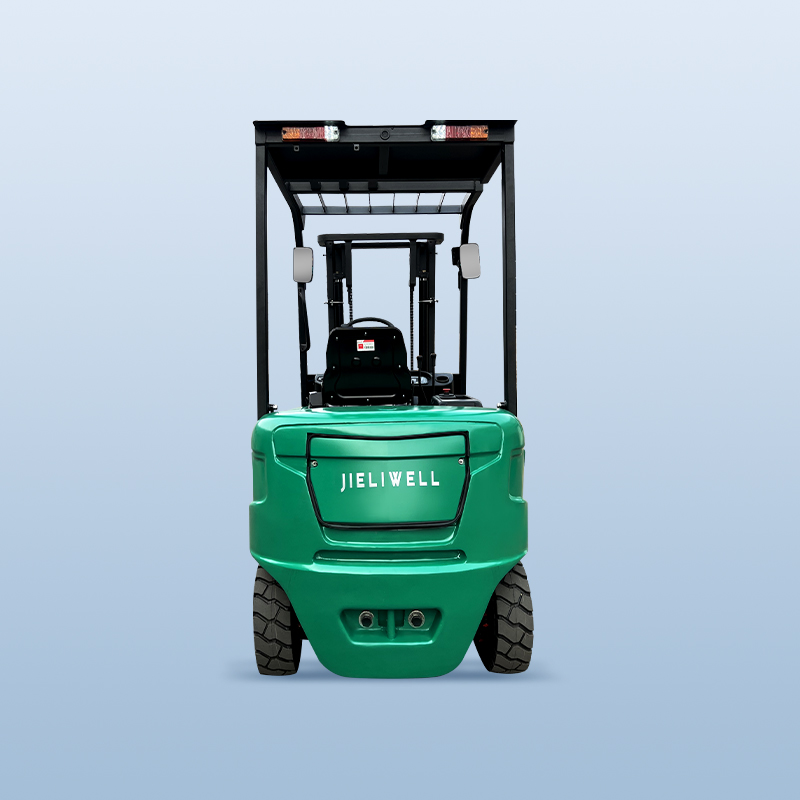

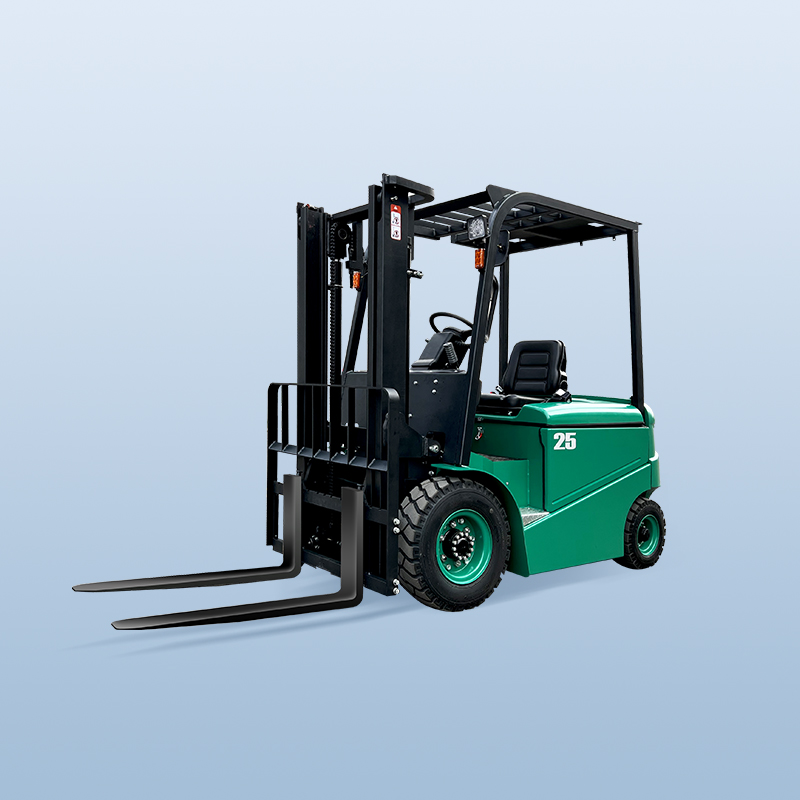

Four-wheel electric forklift truck

♦ Equipped with LCD integrated instrument, clear realization of fault diagnosis and vehicle status monitoring.

♦ The vehicle center of gravity is low, better stability, the same lifting height lifting weight has a significant advantage, while reducing the rear axle load, prolong the working life of steering tires.

♦ Vehicle allowance design, better structural performance, to ensure that high intensity working environment can easily cope with.

♦ The use of ergonomic technology, greatly ensure the operation space, enhance the vision of operation, improve the comfort of operation; Reduce the fatigue intensity of operators.

♦ The whole vehicle drive axle and steering axle are cast to fully improve the reliability of the vehicle.

Technical parameter
Mode
CPD20
CPD25
CPD30
CPD35
Load capacity
KG
2000
2500
3000
3500
Load center
MM
600
600
600
600
Lifting height
MM
3000
3000
3000
3000
Static height of portal frame
MM
2060
2060
2060
2060
Safety rack height
MM
2150
2150
2150
2150
Overall length
Does not contain goods fork
MM
2000
2300
2500
2500
Fork size
(L✖️W✖️T)
MM
1220*125*45
1220*125*45
1220*125*45
1220*125*45
Overall width
MM
1100
1100
1150
1150
Ground clearance
MM
115
115
115
115
Wheel base
MM
1630
1630
1680
1680
Drive motor
KW
5.5
6.0
11
11
Pump motor
KW
8.5
9.5
12
12
Battery voltage/capacity
V/AH
260
300
300
500
Service weight with battery
KG
3000
3500
4000
4300
