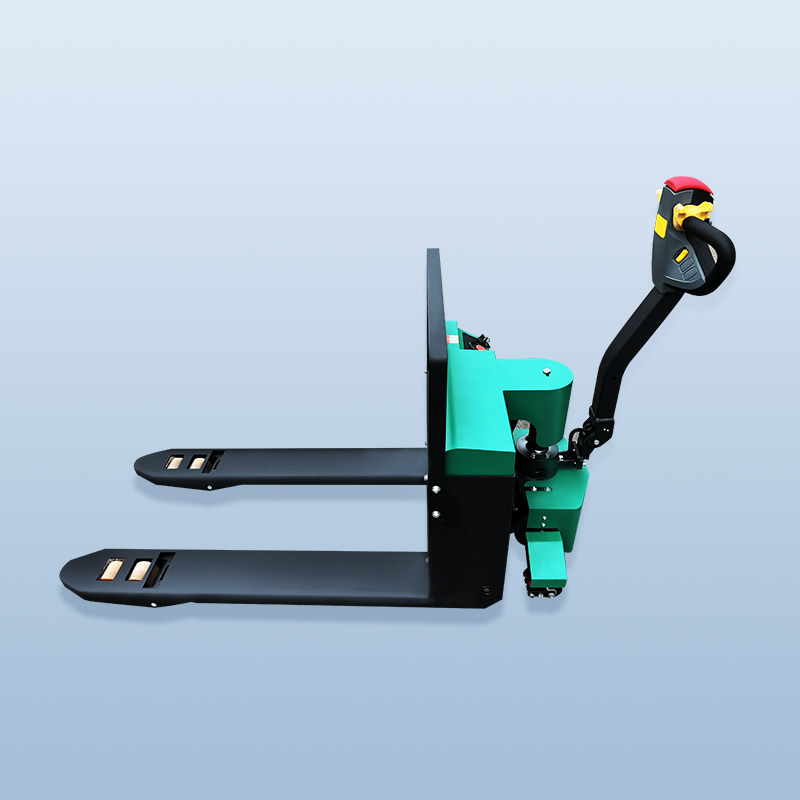

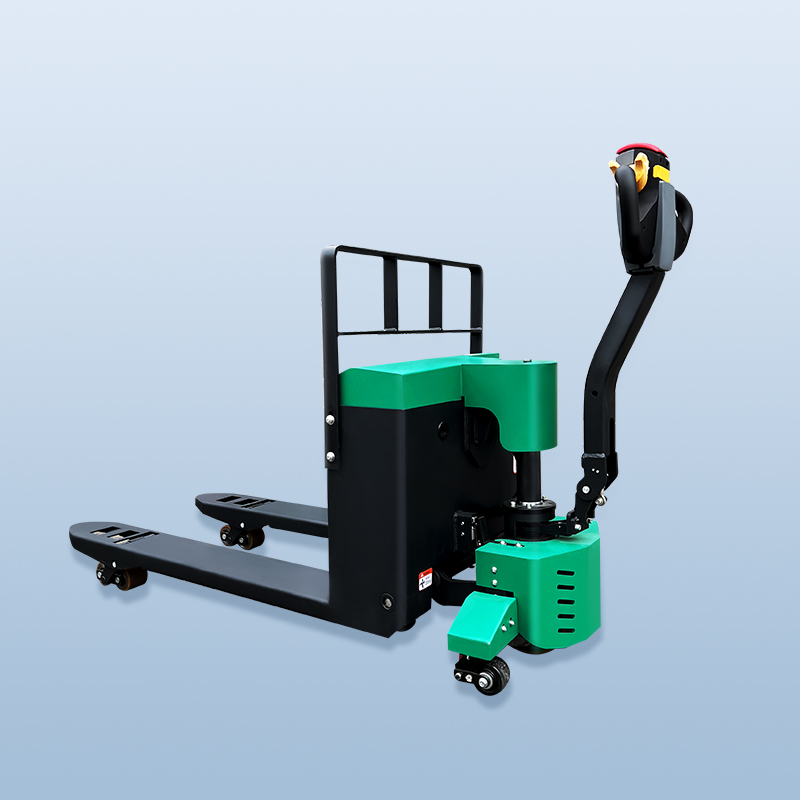

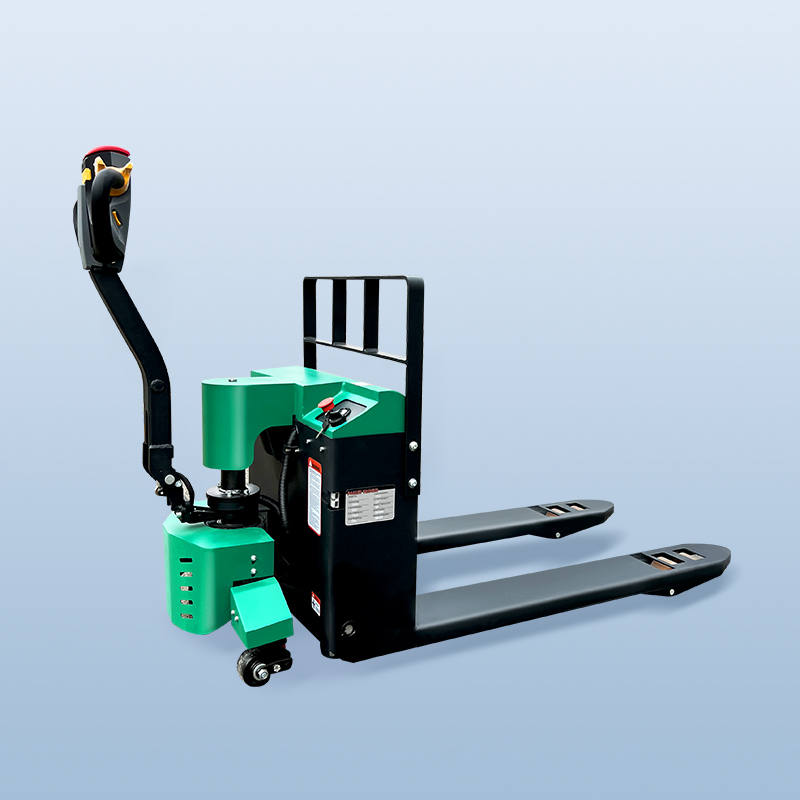

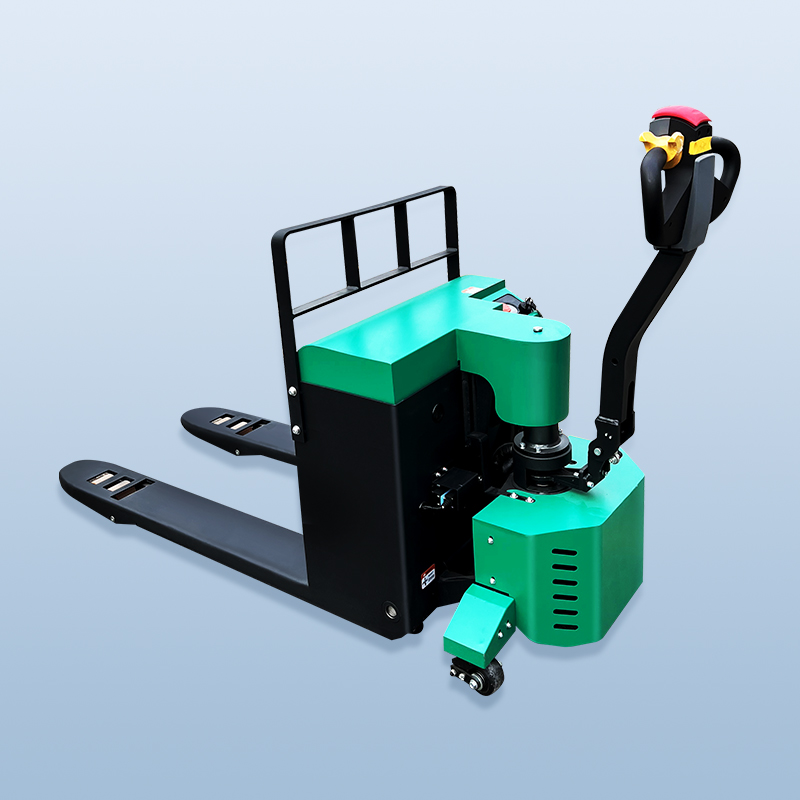

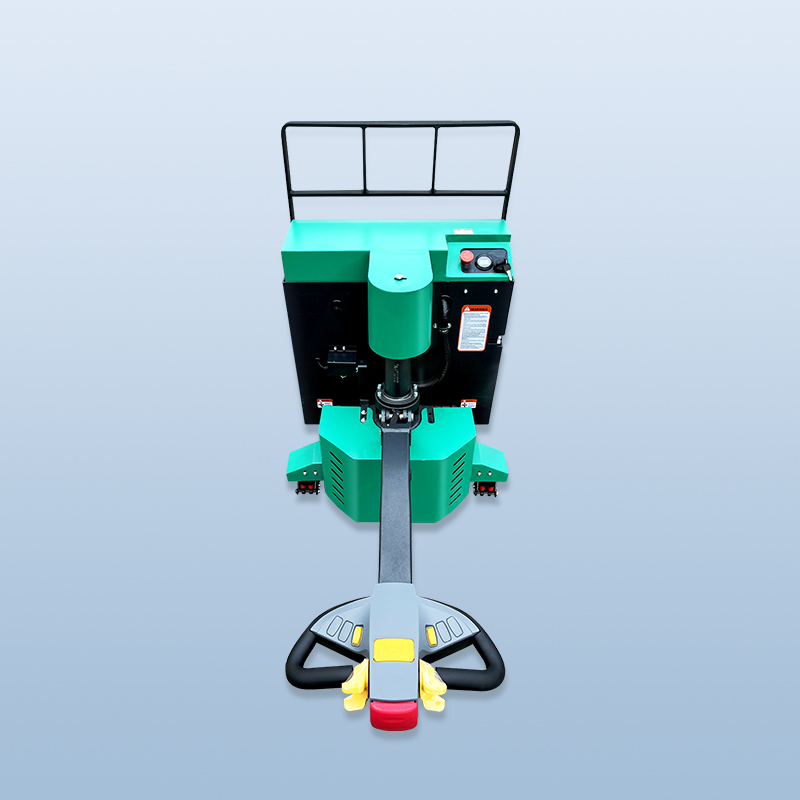

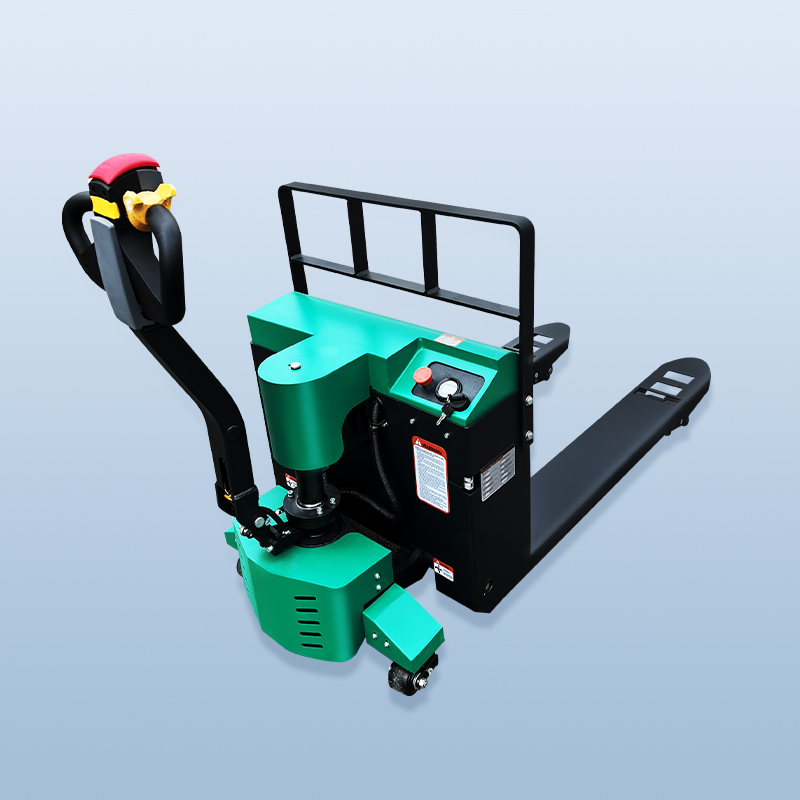

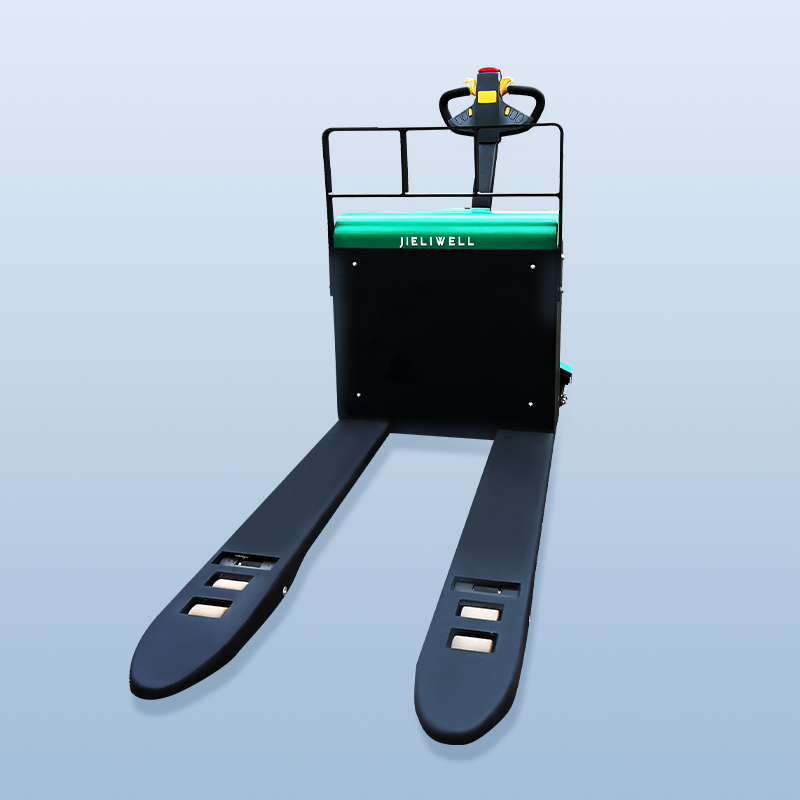

Walking electric pallet truck

 ♦ High quality automatic intelligent acceleration handle, human-machine interaction experience operating range; Full consideration of the operation of the user's experience, easy and convenient operation.

♦ AC full AC drive unit, low vehicle current; Motor torque, good passing performance, climbing ability; Climb the 16% degree ramp with a full load.

♦ The vehicle adopts fully enclosed sheet metal covering parts, which can effectively protect the internal system damage and appearance deformation caused by daily operation collision.

♦ The concept of vehicle allowance design, through the strengthening test; Can work in harsh environment, can work in high intensity conditions, easily push and pull heavy cargo.

Technical parameter
Model
CBD20
CBD25
CBD30
Load capacity
KG
2000
2500
3000
Load center
MM
600
600
600
Overall length
MM
1800
1950
1950
Fork width
MM
550/685
550/685
550/685
Fork length
MM
1200
1200
1200
Gradeability
No load/full load
%
16/25
16/25
13/25
Battery voltage/capacity
V/AH
24/100
48/135
48/135
Service weight with battery
KG
260
380
460
